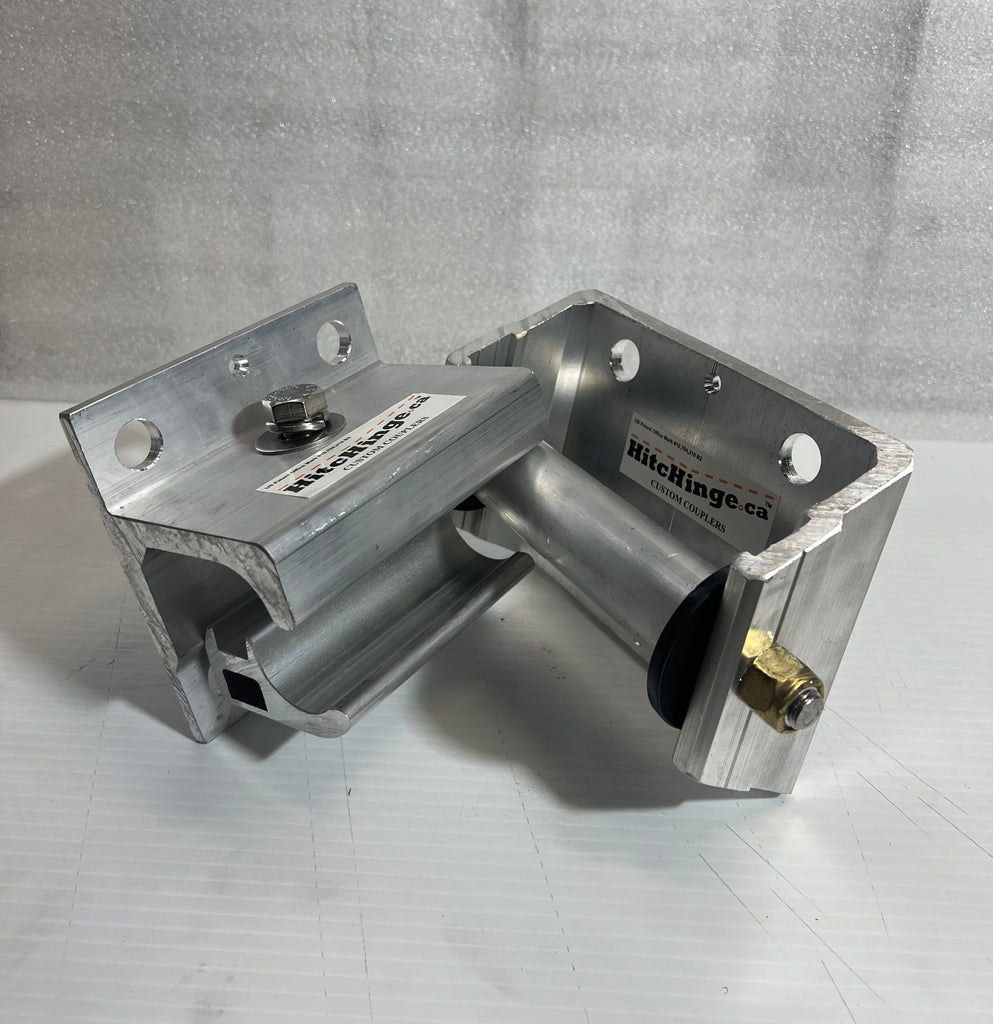

HITCHINGE PRO HPRO12-01 (6061-T6 Aluminum Mill Finish)

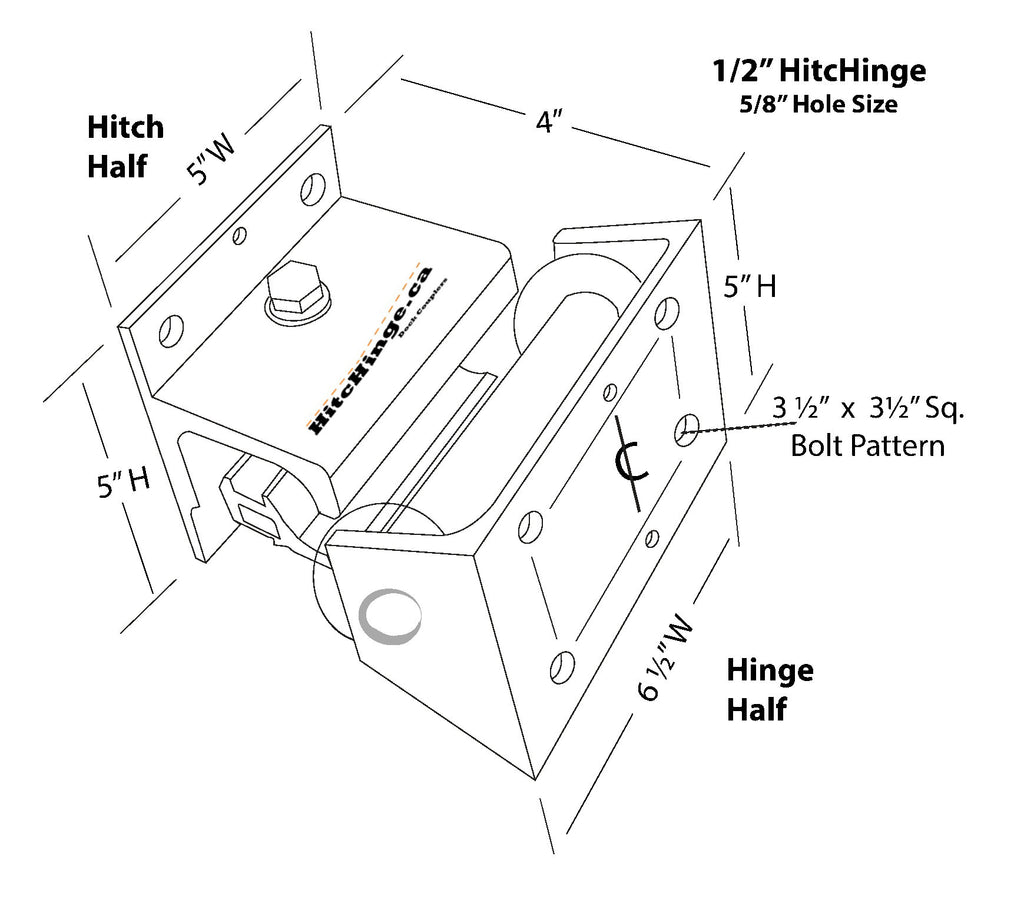

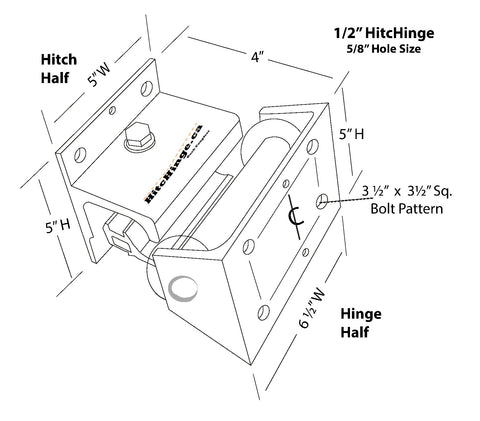

Heavy Duty Serviceable HitcHinge made with 5/8" mounting holes for 1/2" carriage bolts. (recommended)
Targeting Fresh or Salt water applications.
The Hitch Pro (TOOTH ) (HPRO12-02) features a 316 Grade stainless steel actuation bolt that is secured with a silicone bronze nut.

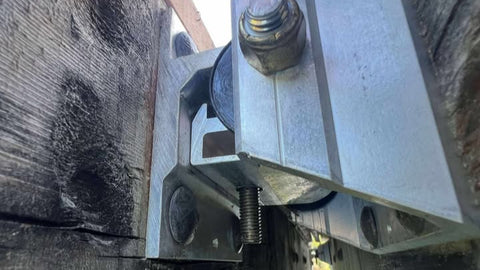

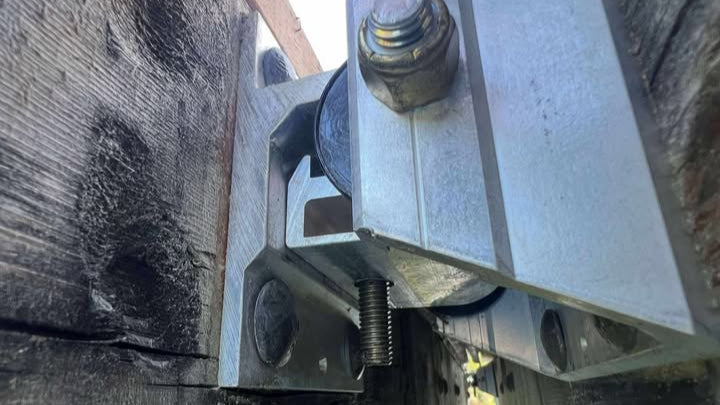

The bolt is welded to ensure it remains intact.
The Hinge Pro (HPRO12-03) uses SS axis bolt with the brass Nylock nut
The Hinge Pro is Serviceable
(Replacement parts available (HPROPR)
Mounting Hardware per HitcHinge is NOT INCLUDED.
(SS HARDWARE RECOMMENDED FOR SALT WATER APPLICATIONS)
You will need 8 (1/2") Carriage bolts (recommended)
(length of your bolt depends on your installation needs)
8 flat washers 8 lock washers and 8 nuts
YOU WILL NEED TO ORDER 2 HITCHINGES (HPRO12-01 ) PER JOINED SEGMENT
Also available as:
