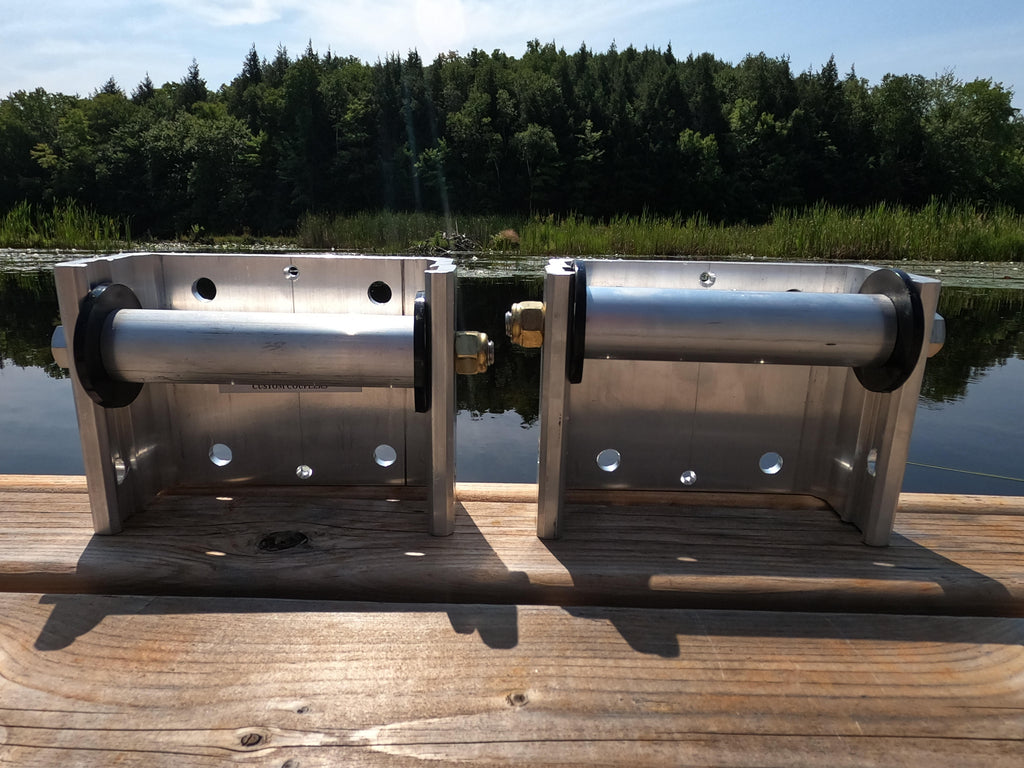

This Hinge Half Pro (HPRO12-56 ) is used to level dock attachments.
(6061-T6 Aluminum Mill Finish)
Targeting Fresh or Saltwater applications
Heavy Duty Serviceable
(Hinge Pin Replacement Assembly can be purchased
separately # (HPROPR) .
Used to level up varying deck elevations by 1” or 1 ½” or can be used inverted.
The RE: Aluminum ramps to wooden dock segments.
3.5" sq bolt pattern with an 1, 1 1/2" custom centre axis rise/lower
using a bolt for assembly as the pin.
Uses SS axis bolt with the brass Nylock Nut.
Mounting Hardware Not Included
(SS Hardware recommended for salt water applications)
You would need 4 (1/2") Carriage bolts (recommended)
(length of your bolt depends on your installation needs)
4 flat washers, 4 lock washers, 4 nuts.
Available also
HPRO38-56 Rise/Lower Hinge
HPROWO-56 Welded Rise/Lower Hinge
A Hitch for your mounting needs required.
